plastic auxiliary equipment shredder for shreding all kinds of plastic
Quick detail:
-
bottle and ton bags,film,fiber etc.
-
Used for washing, pelletizing
-
CE certificate
-
different cutter to cut different size
Description for plastic auxiliary equipment shredder for shreding all kinds of plastic:
Topping blade with enhanced cutting capacity to produce equal granules with less power
Claw type and flat type available for various application
Soundproof feeder hopper with inner layer made of stainless steel
CE standard
Blade made of high-chromium alloy tool steel with adjustable extension elongation
With bearing of high quality
Compact structure, no pileup and easy to clean and maintain
|
Model
|
Crushing chamber
|
Crushing ability
|
Stationary cutter
|
Rotary cutter
|
Kw
|
Size (L*W*H)
|
Neight
|
|
GY-10HP
|
360*260
|
200-400
|
2
|
18
|
7.5
|
106*83*144
|
540
|
|
GY-15HP
|
420*280
|
300-500
|
2
|
21
|
11
|
127*90*160
|
795
|
|
GY-20HP
|
480*330
|
350-550
|
2
|
24
|
15
|
137*98*179
|
1040
|
|
GY-30HP
|
660*350
|
500-800
|
4
|
27
|
22
|
157*132*200
|
1700
|
|
GY-50HP
|
720*500
|
800-1200
|
4
|
27
|
37
|
187*151*248
|
2750
|
|
GY-75HP
|
910*820
|
850-1300
|
4
|
30
|
55
|
236*192*370
|
5400
|
|
GY-100HP
|
1050*820
|
1000-1500
|
6
|
33
|
75
|
251*206*370
|
6250
|
Materail which can be feed into the plastic auxiliary shredder machine

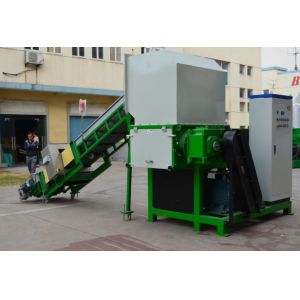

Plastic auxiliary machine, single shaft shredder
After shreddered
Properties:
1. rotor blades on the knife holder and removable for easy cleaning, maintenance, maintenance;
2. knife with small "V" shaped installation, so turn the knife in the whole work cut material evenly, reduce energy consumption, reduce noise;
3. Each rotary blade has 4 cutting edges, the wear and tear can be rotated 90 ° to continue to use;
4. Each fixed blade has 2 cutting edges for working at the same time, the wear and tear can be rotated 180 ° to use;
5. main shaft is driven by a gear box, smooth operation, low noise, large torque;
6. hydraulic pusher, an independent power systems, solid structure, smooth operation;
