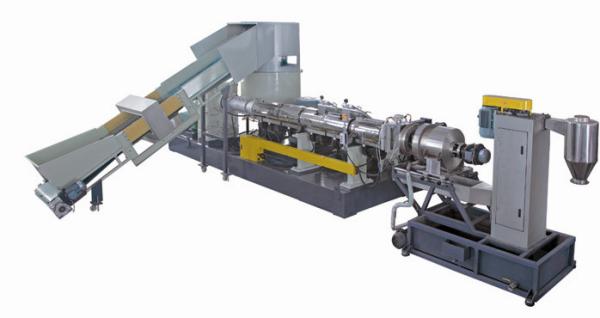

Film Plastic Pellet Machinery For Recycling Water Ring Die Face Hot Cutting
Quick Detail for Film plastic pelletizing machine plant for recycling by water ring die face :
1. CE Certificate
2. CAS identification
3. Low power consumption
4. Long service life
5. Stable performance
6. Positive quick after-sales service
7. Installation and training support
Description for water ring film plastic pelletizing machine plant for plastic recycling marerial:
A. Features of water ring film plastic pelletizing plant
1..High efficiency
Compared with the primary design, the output of PURUI second generation film granulator machine has been increased 20%.
3.Low power consumption
The power consumption reduces 15% compared with the primary design.
4.Highly automatic
Only 2 people are needed for one production line.
B. Applications of PE,PP plastic pelletizing plant:
Applicable plastic materials: PE, HDPE, LDPE, PP, BOPP, etc
Material shapes: film, bag, (PE, PP) regrind
Material types: rolls, loose, bundled
Material comes from offcut, industry defective film, washed film and printed film.
Note: depending on different material properties, various downstream equipments are needed.
C. How it works
①Feeding is automatic according to customer requirements.In the patented ②cutter compactor the material is cut,mixed,heated,dried,densified and buffered.
The tangentially connected extruder is filled continuously.In the ③ extruder screw the material is extruded.
In the ④ degassing zone: the air and water etc is volatilized here. The material is extruded to the die ⑤.and ⑥ pelletizer.
D. Machine components
|
No.
|
Machine name
|
Qty
|
|
1
|
Belt conveyor
|
1
|
|
2
|
Compactor
|
1
|
|
3
|
Main machine
|
1
|
|
4
|
Hydraulic screen changer
|
1
|
|
5
|
Water ring hot cutting system
|
1
|
|
6
|
Chute
|
1
|
|
7
|
Centrifugal dewatering
|
1
|
|
8
|
Vibration (optional)
|
1
|
|
9
|
Wind transmission system & Silo storage
|
1
|
|
10
|
Electric control cabinet
|
1
|
Specifications:
Main Technical Parameter:
Normal:
|
Model
|
ML85
|
ML100
|
ML130
|
ML160
|
ML160-Ⅱ
|
|
Output(kg/h)
|
120-200
|
200-400
|
400-650
|
600-1000
|
800-1200
|
High output, low consumption:
|
Model
|
ML85B
|
ML100B
|
ML130B
|
ML160B
|
ML180B
|
|
Output(kg/h)
|
200-350
|
400-550
|
600-800
|
800-1200
|
1000-1500
|
Competitive Advantage:
1. High automation level, try best to reduce your cost on labor and ensure high processing capacity.
2. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.
3. High quality, high efficiency components such as
ABB(Switzerland),FUJI(Japan),DELTA(Taiwan),SIEMENS(Germany) and some other famous brands are adopted if customer requires.
4. Very low power consumption and maintenance costs, ensuring the lowest operating cost.
D. Detailed machine photos for your reference
Raw material for water ring film plastic pelletizing plant
Hydraulic screen changer & Water ring pelletizing system
Final pellets
